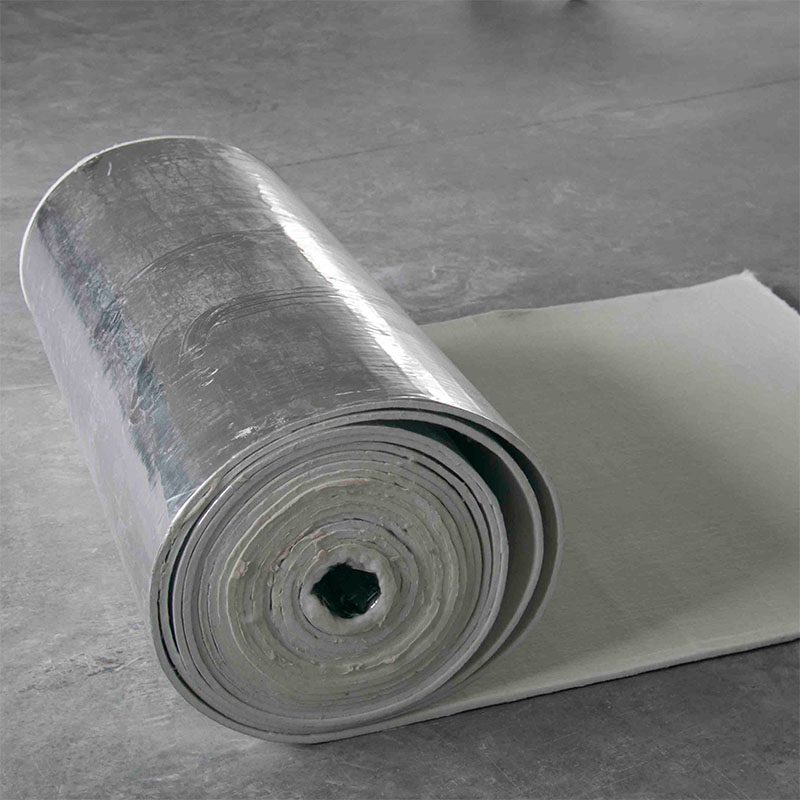

Silica Aerogel Insulation Sheets Waterproof and Fireproof Thermal Aerogel Insulation Type-200℃~1000℃ 1~20mm

Silica Aerogel Insulation Sheets Waterproof and Fireproof Thermal Aerogel Insulation Type-200℃~1000℃ 1~20mm


The aerogel composite material adopts nano-aerogel and glass fiber,ceramic fiber and other substrates to perfectly combine the aerogel with flexibles with excellent performance,maximizing the retention of the lightweight and heat Insulation characteristics of aerogel substratel, and endowing the aerogel with flexibility and toughness.

Share
Property

Aerogel blanket is soft, easy to cut, low density, inorganic fire prevention, overall hydrophobic, green environmental protection and other characteristics, it can replace glass fiber products, asbestos insulation felt, silicate fiber products and other environmental protection, poor insulation performance of traditional flexible insulation materials.

Low thermal conductivity: 0.013~0.016 W/[K · m]

Low density: 1~30 kg/m3

High porosity: 80%~90%

Nanoscale Materials: 2~50 nm

High surface area: 600~1000 m2/g


Specification
Proiectaerogel blanket -200≤ T ≤ -50aerogel blanket -50≤ T ≤ 650aerogel blanket 650T ≤ 1000c

Thermal Conductivity
(W/m · K)

Standard Requlrement

Estimated Value

Standard Requlrement

Estimated Value

Standard Requlrement

Estimated Value
When the average temperature is
25℃≤ 0.021
0.018When the average temperature is 25℃≤ 0.0210.02When the average temperature is 25℃≤ 0.0250.02
When the average temperature is
-129℃
0.014When the average temperature is 300℃≤0.0360.035When the average temperature is 500℃≤0.0720.071
When the average temperature is 800℃0.142
Permanent Linear Change on
Heating
≥-2.0%-1.5≥-2.0%-0.5≥-2.0%-0.2
Water vapor filtration0
Loss Ratio on Vibration Quality(%)≤1.00.3≤1.00.2
Volume Density
(kg/m³)
120160150±10180220200160220180±20
Tensile Strength
(kPa)
≥2001600crosswise≥2003000
lengthways≥200800
Compressive Strength(kpa)deformation25%
(20% Distortion)
80
Max Working Temperature(℃)20020065065010001000
Moisture Absorption on Mass(%)≤5.02≤5.00.9
Water Absorption on Volume(%)≤1.00.75≤1.00.1
Hydrophobicity(%)≥9899.9≥9899.6
CorrosivenessTo cover austenltic stainless steelPassTo cover austenltic stainless steelPassTo cover austenltic stainless steelPass
Combustibllity RatingA(A2)A(A2)A(A1)A(A1)


Application

Aerogel blanket is mainly used in industrial pipeline, storage tank, industrial furnace body, power plant, life capsule, warship bulkhead, bullet car, direct buried pipeline, injection molding machine, detachable insulation sleeve, heavy oil mining high temperature steam pipeline, transportation, household appliances, steel, non-ferrous metal, glass and other fields of heat insulation.

1) -200℃ ≤ T ≤ -50℃:based on mixed fiber felt as aerogel skeleton substrate and exhibiting excellent flexibility and compression strength, is uesd for temperatures as low as -200°C.

2) -50℃ ≤ T ≤ 650℃:based on tailor made glass fiber as aerogel skeleton substrate and exhibiting higher mechanical strength and temperature resistance, is uesd for temperatures up to 650°C.

3)650℃ ≤ T ≤ 1000℃:based on tailor made glass fiber as aerogel skeleton substrate and exhibiting even higher temperature resistance, is uesd for temperatures up to 1000°C.

4)Special Tailor-Made:Customized products are those meeting demands of special thickness, special substrate, special structure, special molding.special fire prevention or hydrophobicity, such as aerogel paper, profile-shaped parts, new energy battery heat shield, etc.

11
Aerogel
22
Aerogel
32
Aerogel


44
Aerogel
55
Aerogel
66
Aerogel
Package、Tranportation、Storage

Way of packing: plastic film or paper thimble

1. Aerogel blanket should be handled lightly during transportation and handling to avoid the loss or damage of the outermost moisture-proof protective film.

2. Please store in a clean, dry and protected environment. In the outdoor environment, should choose the higher ground, the cushion is not less than 200mm cushion or bracket, bracket, and the waterproof cloth or plastic sheet will cover it completely. The storage of aerogel blanket must be protected against rain and snow.

3. If there is rain or bad weather during the construction, the shell or tent is needed to protect the pipe at the installation site.

4. Aerogel blanket should always be placed sideways/stacked, never upright, and always properly covered and stored in a dry environment.

11
22
55
44
